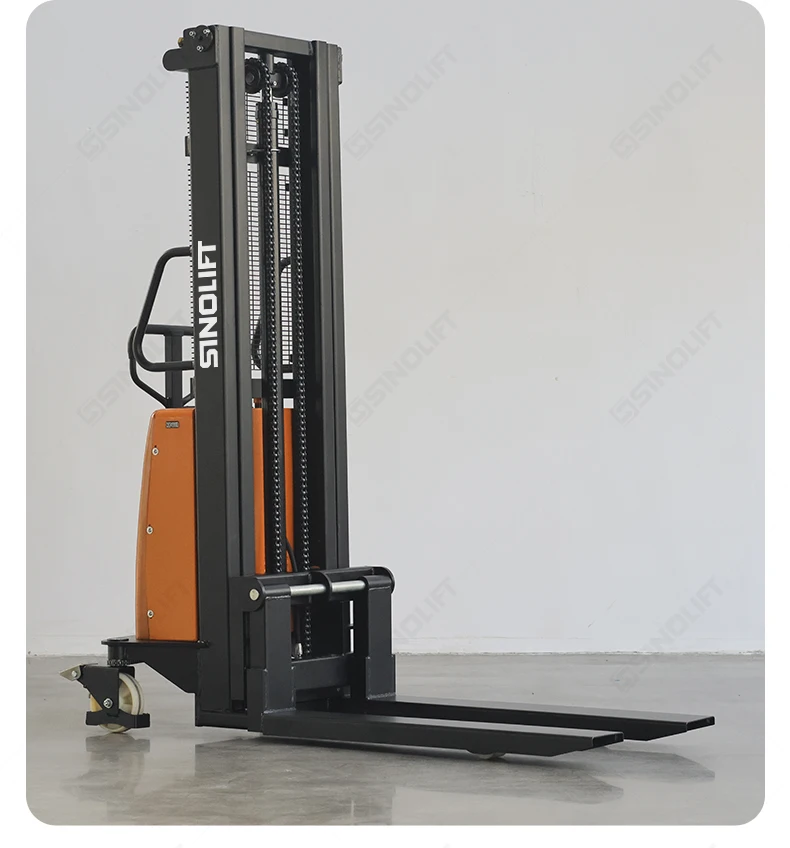

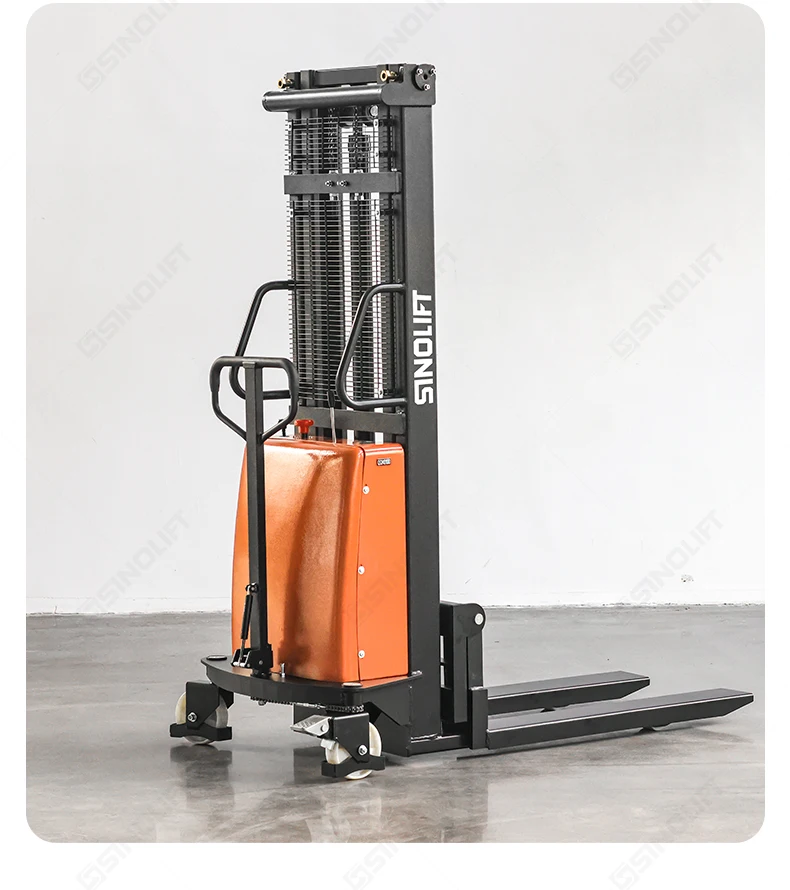

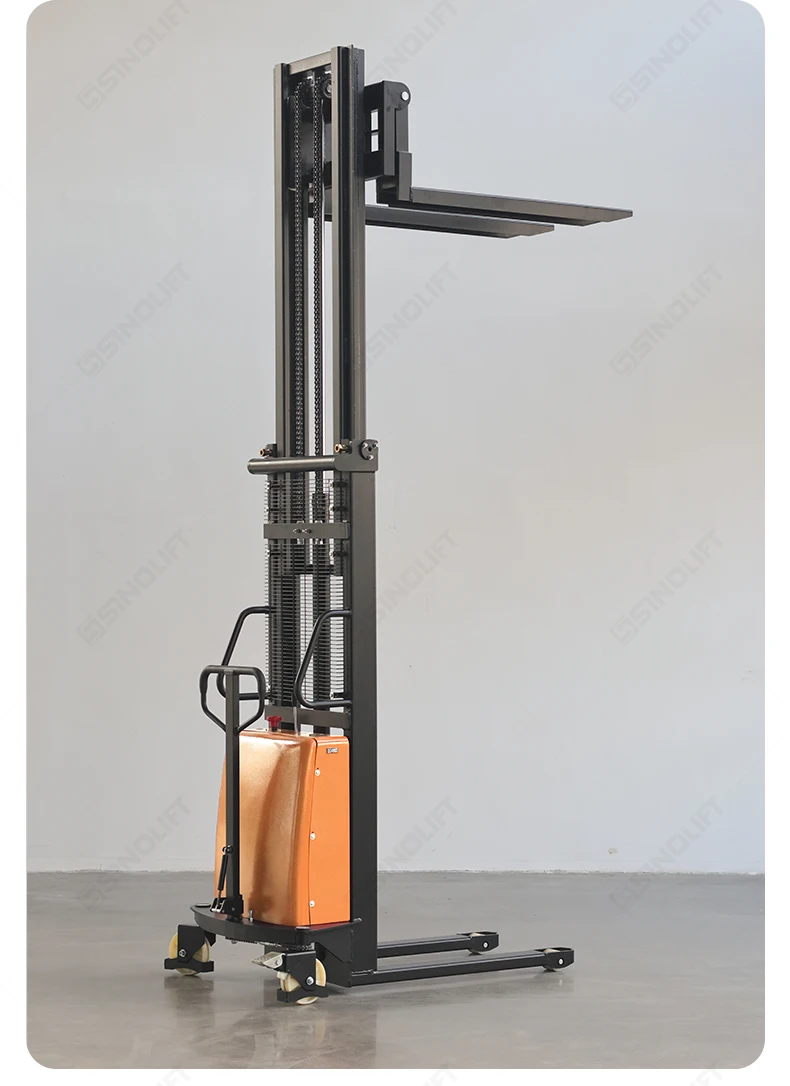

SPN15 Narrow Leg Pallet Stacker, Semi-Electric Hydraulic Stacker

stars, based on 0reviews

$3700.00 piece

Model Number

Specifications	Manufactuer				SINOLIFT
	Model				SPN15 (Fork over)
	DistinguishingClassification type				SPN1516	SPN1520	SPN1525	SPN1530	SPN1535
	1.1	Drive			Manual + Electric
	1.2	Operator type			Pedestrian
	1.2	Operator type			Pedestrian

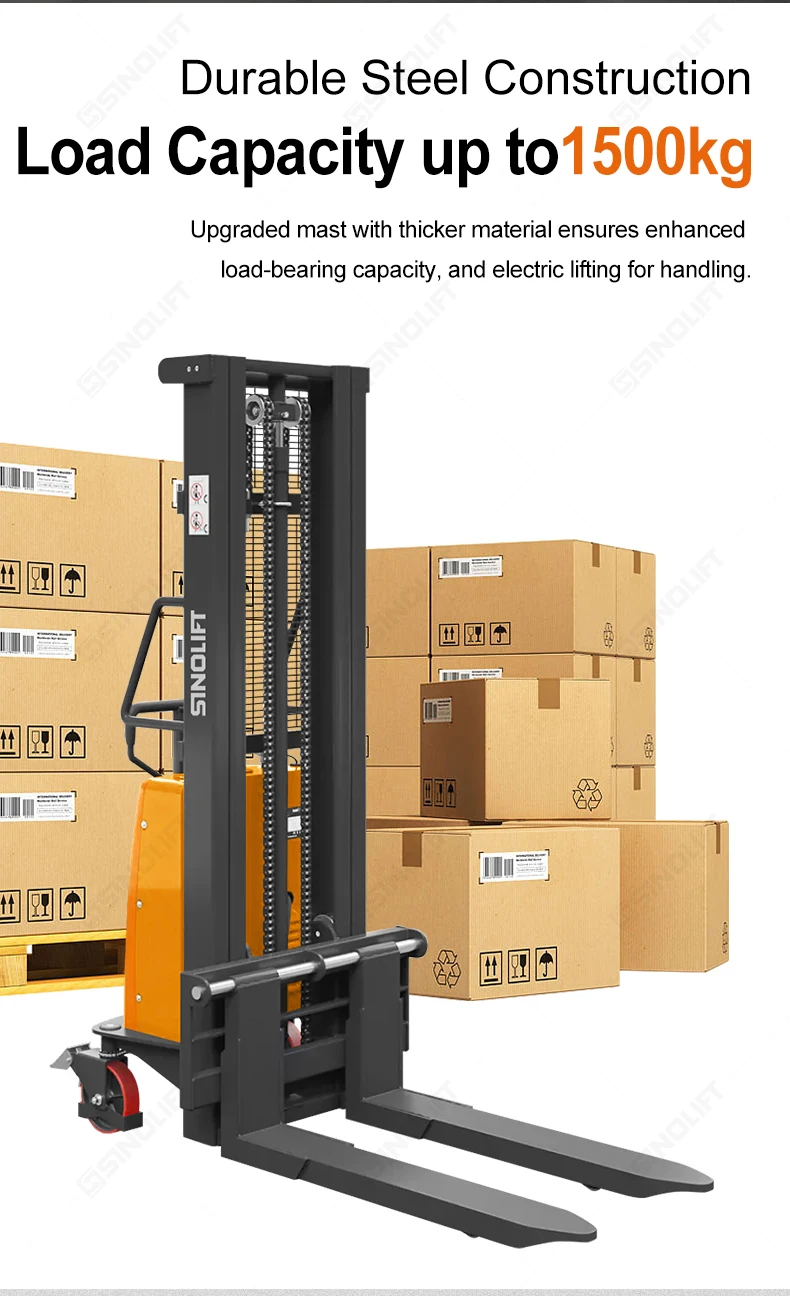

	1.3	Load capacity/ Rated load	Q	kg	1500
	1.4	Load centre distance	c	mm	600
	1.5	Load distance, centre of drive axle to fork	x	mm	730
	1.6	Wheelbase	y	mm	1253
Weight	2.1	Service weight (Without battery)		kg	350	377	411	445	467
	2.2	Battery weight		kg	34
	2.3	Axle loading, laden front/rear		kg	//
	2.4	Axle loading, unladen front/rear		kg	//
Tyres,Chassis	3.1	Tires			PU
	3.2	Tires size. Front	pxy	mm	180 x 50
	3.3	Tires size. Rear	pxy	mm	80 x 70
	3.4	Additional wheels(Dimensions)	pxy	mm	180 x 50
	3.5	Wheel number, Drive wheel/Load Wheel/Balanced wheel (x=drive wheel)			2/2
	3.6	Tread, front, Drive side	b10	mm	714
	3.7	Tread, rear, Load side	b11	mm	390 (490)
Dimensions	4.1	Lowered mast height	h1	mm	2135	1635	1885	2135	2385
	4.2	Free lift height	h2	mm	0

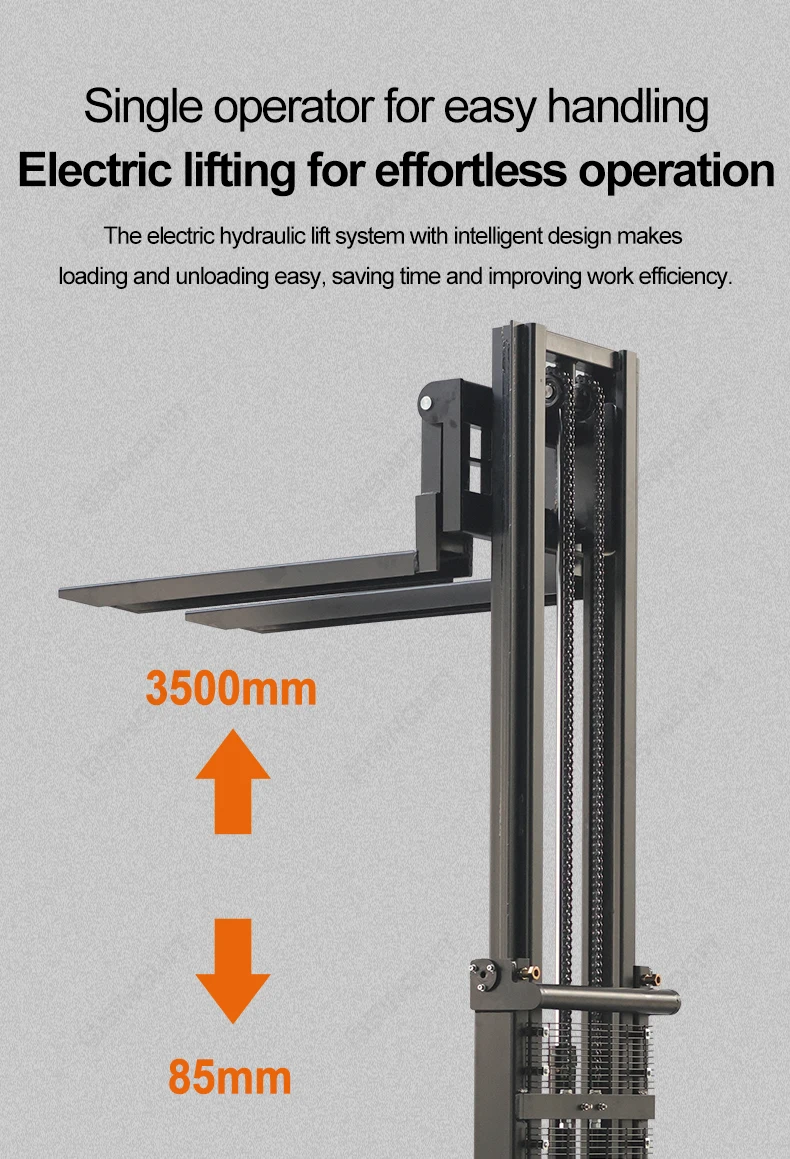

	4.3	Lift Height	h3	mm	1600	2000	2500	3000	3500
	4.4	Extended mast height	h4	mm	2135	2605	3105	3605	4105
	4.5	Height of tiller in drive position min./max.	h14	mm	//
	4.6	Height, lowered	h13	mm	85
	4.7	Overall length	l1	mm	1745
	4.8	Length to face of forks	l2	mm	676
	4.9	Overall width	b1/b5	mm	820/550 (650)
	4.11	Length of leg		mm	1080
	4.12	Fork dimensions	s/e/l	mm	35/160/1100
	4.13	Distance between fork-arms	b5	mm	550 (650)
	4.14	Ground Clearance, centre of wheelbase	m2	mm	30

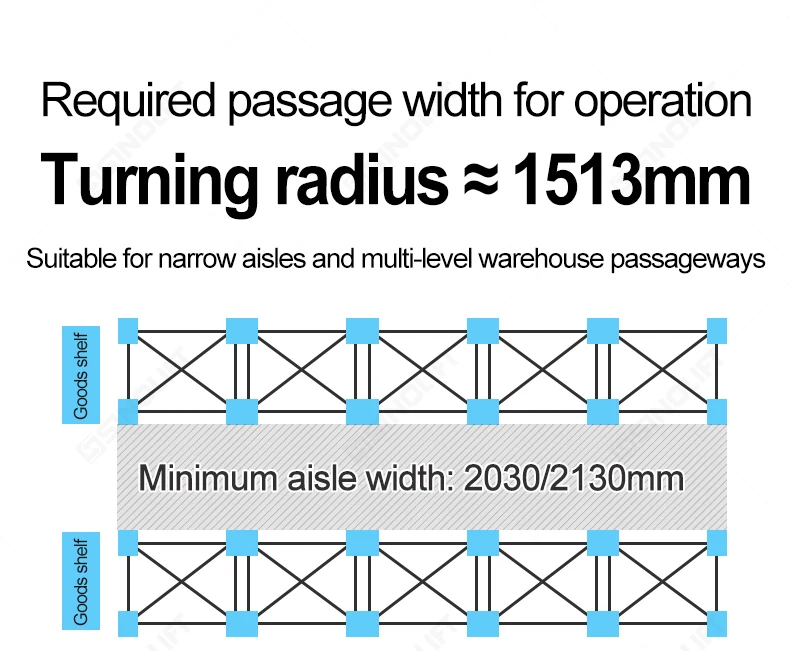

	4.15	Aisle width for pallets 1000x1200 crossways	Ast	mm	2130
	4.16	Aisle width for pallets 800x1200 lengthways	Ast	mm	2030

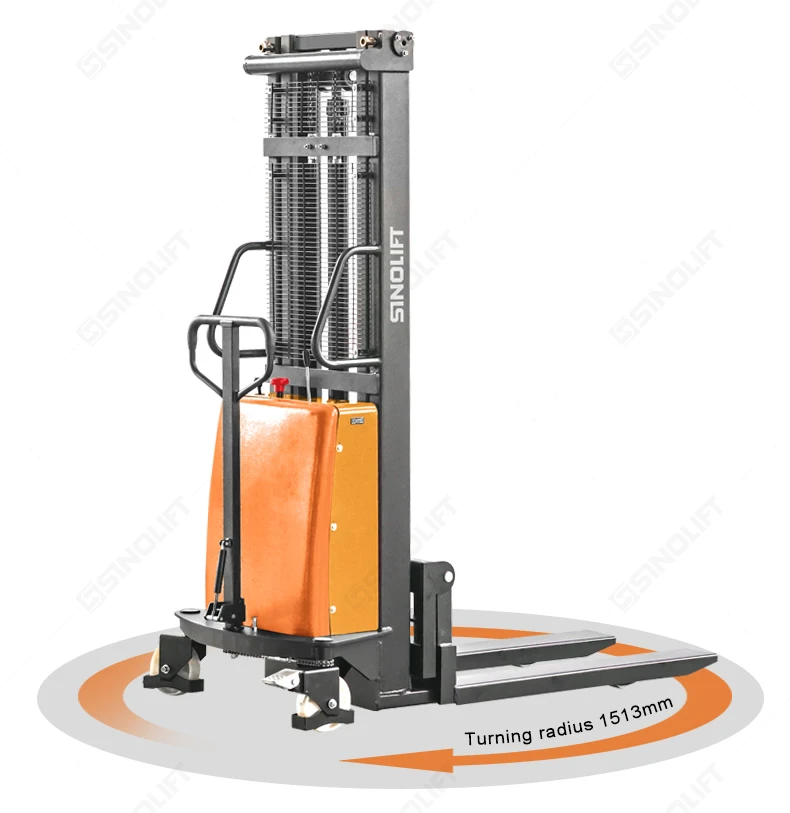

	4.17	Turnign radius	Wa	mm	1513
Performance	5.1	Travel speed, laden/unladen		mph	//
	5.2	Lift speed, laden/unladen		mm/s	68(114)	65(102)	65(102)	65(102)	65(102)
	5.3	Lowering speed, laden/unladen		mm/s	115(89)	113(89)	113(89)	113(89)	113(89)
	5.4	Max. Gradeability, laden/unladen		%	//
	5.5	Service brake			Mechancial
Electric motor	6.1	Drive motor rating		kw	//

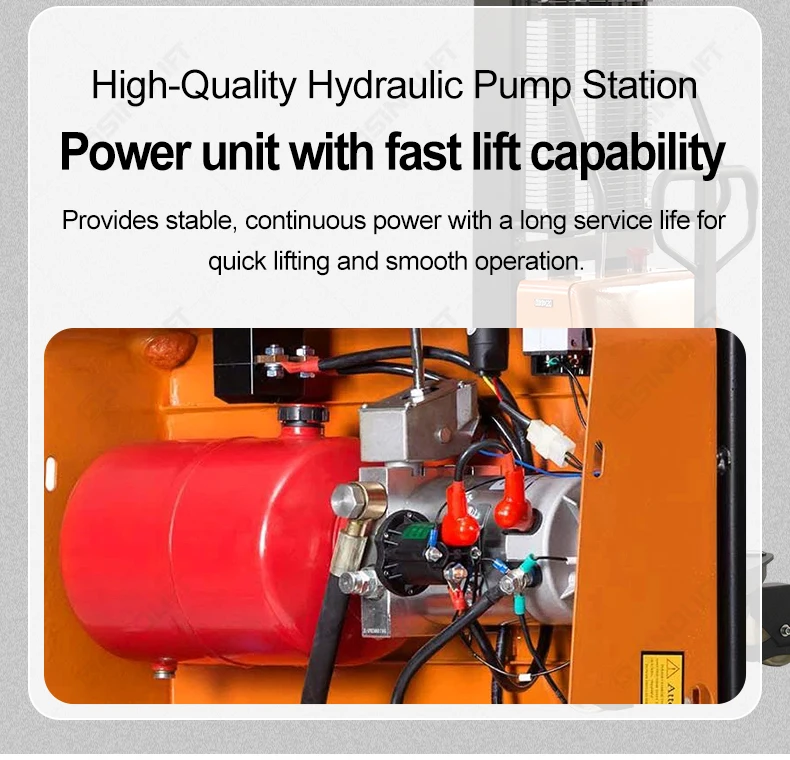

	6.2	Lift motor rating		kw	2.2
	6.3	Battery voltage, nominal capacity		V/AH	Lead-acid 1*12V/120AH (150Ah as option)
	6.5	Type of control			//
	6.6	Sound level at driver's ear acc. to EN12053		dB(A)	65
