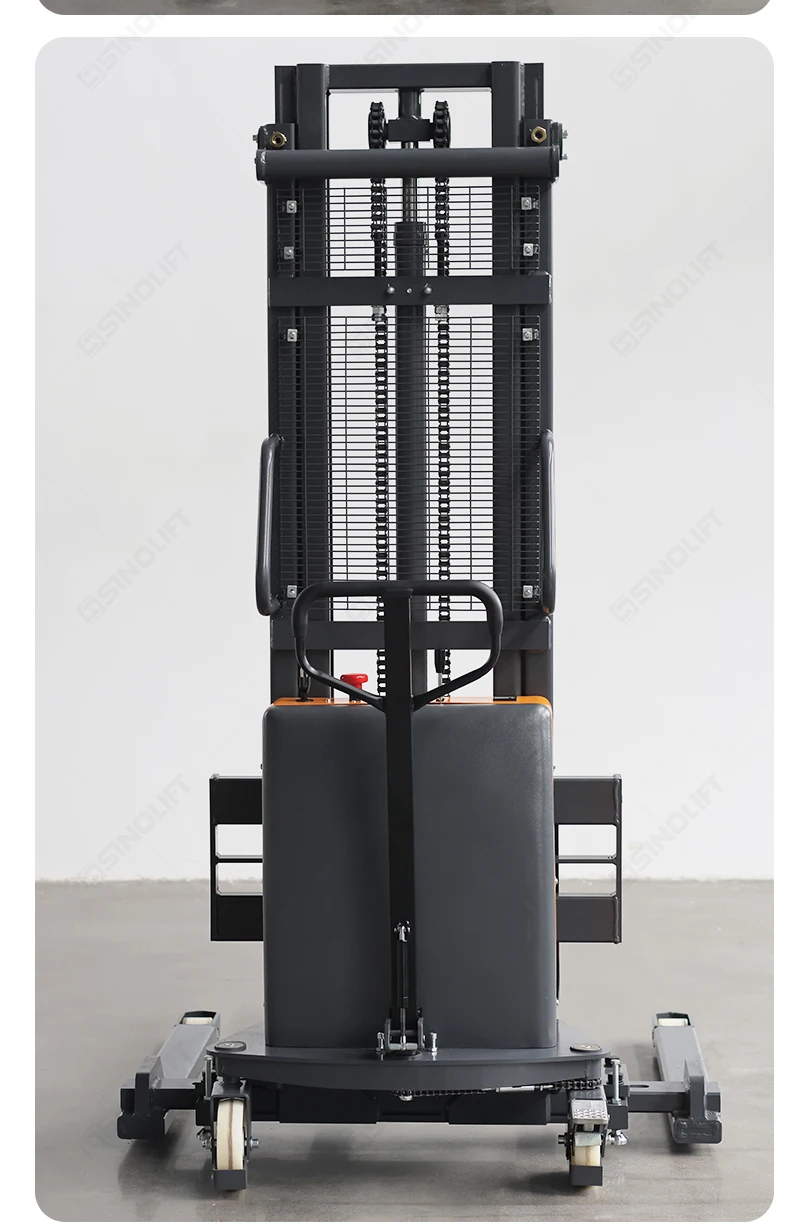

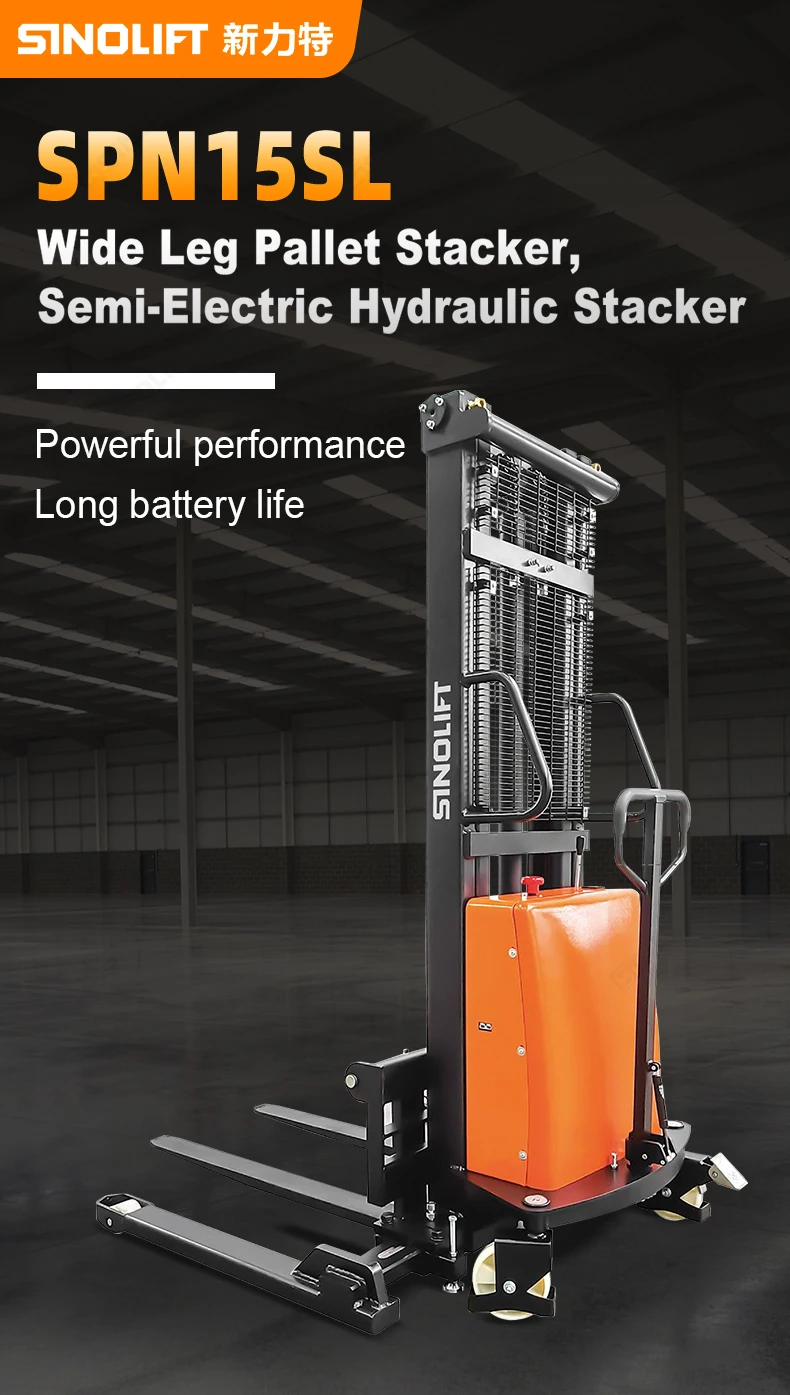

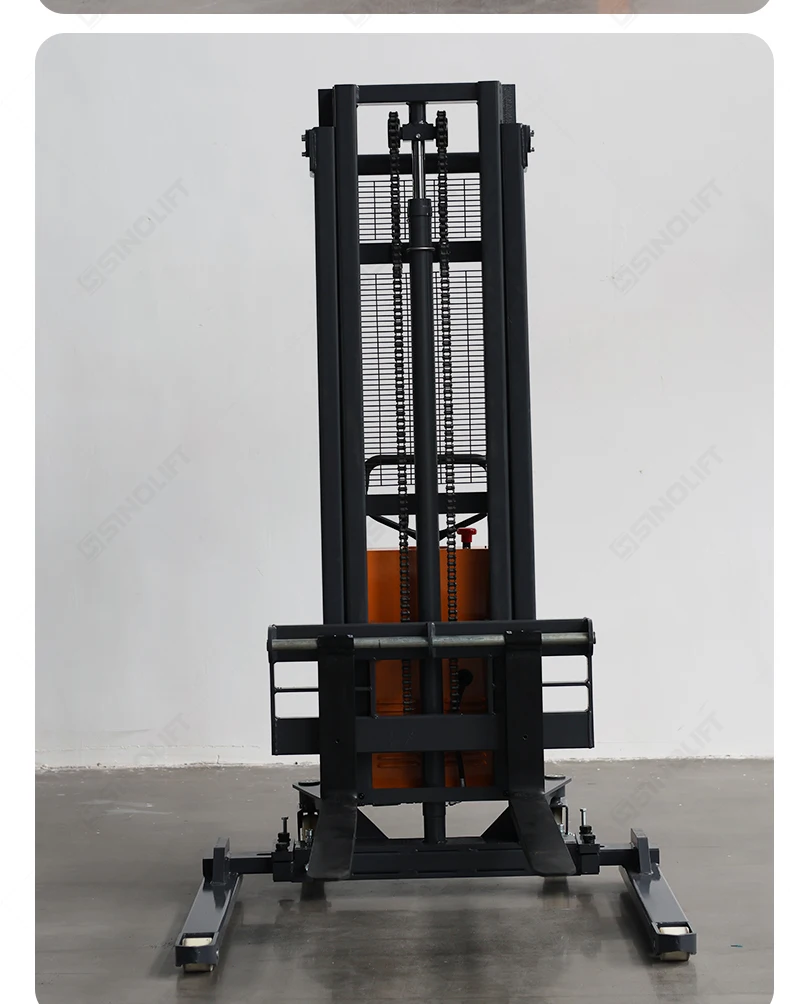

SINOLIFT SPN15-SL Wide Leg Pallet Stacker Semi-Electric Hydraulic Stacker

stars, based on 0reviews

$3700.00 piece

Model Number

Manufacturer		SINOLIFT
Model		SPN1016	SPN1020	SPN1025	SPN1030	SPN1035	SPN1516	SPN1520	SPN1525	SPN1530	SPN1535	SPN2016	SPN2020

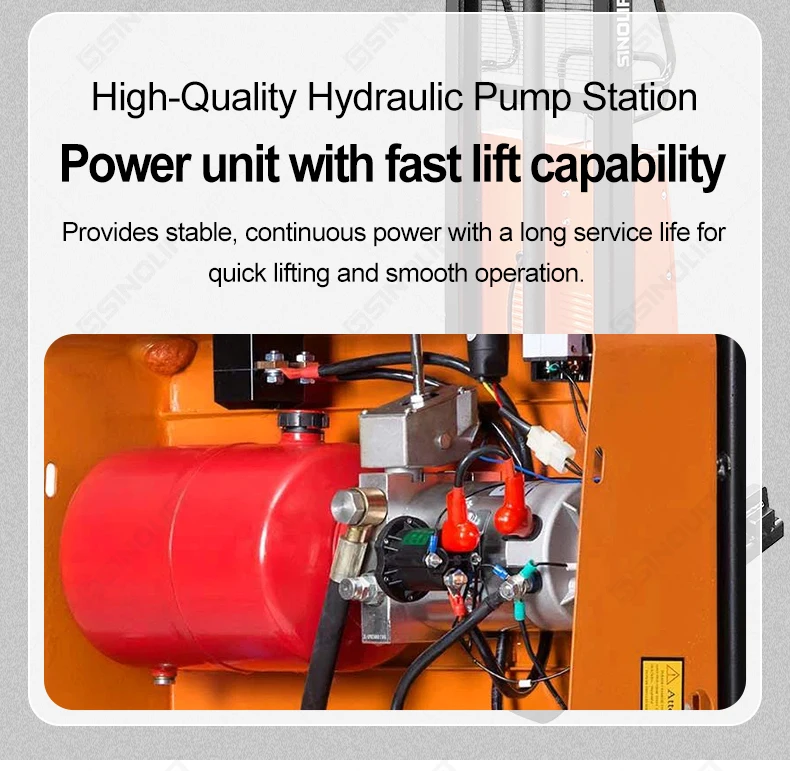

Power unit		electric

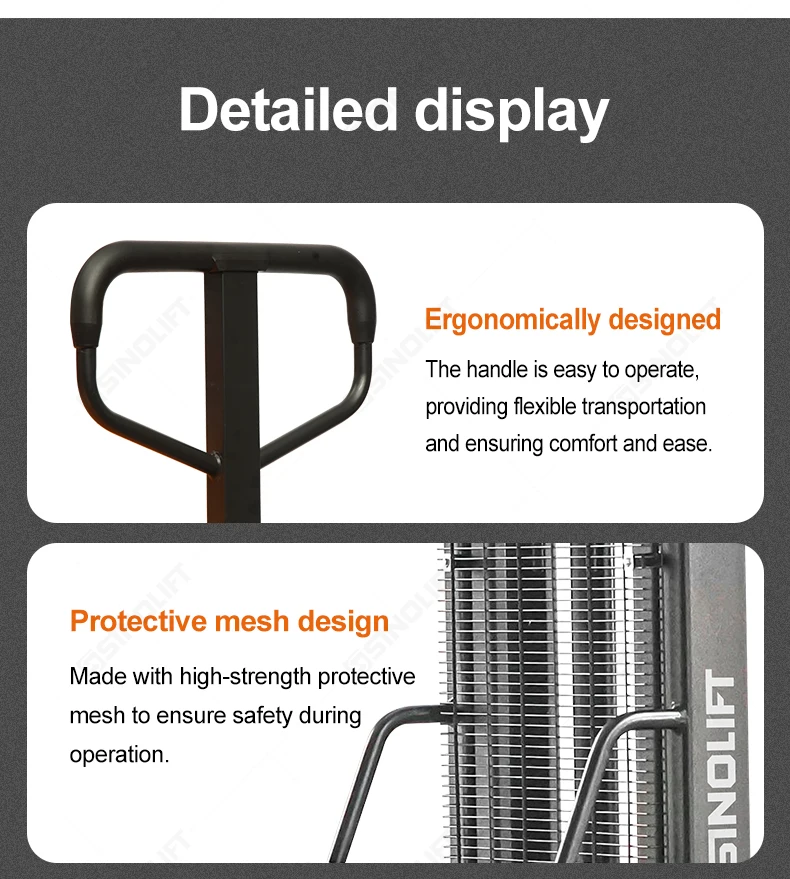

Operation		handle

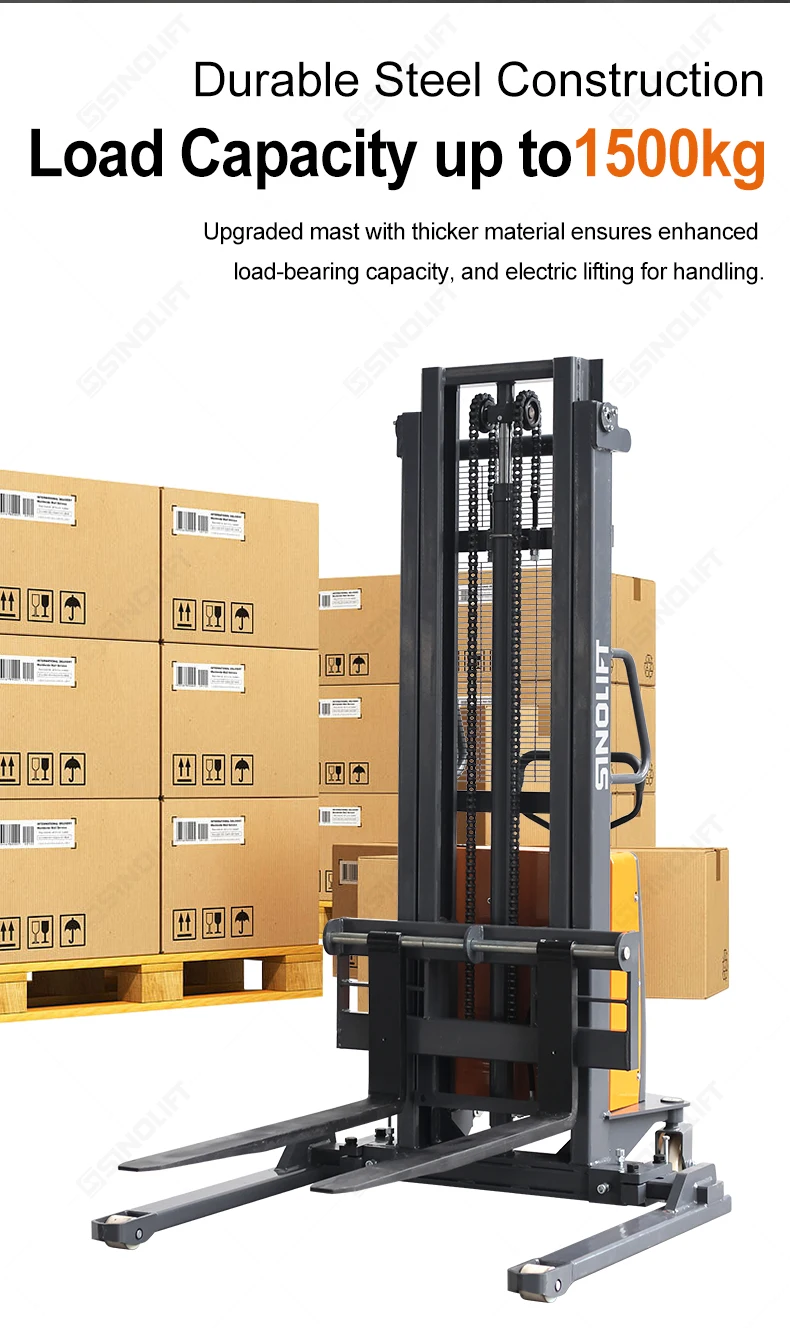

Rated traction weight	Q (t)	1					1.5					2
Load centre	c (mm)	450
Axle centre to fork face	x (mm)	705	700				705	700				705	700
Wheel base	y (mm)	1195
Service weight with battery	kg	315	365	374	380	405	320	374	385	395	415	325	380
Wheels type		(nylon/polyurethane)
Driving wheel size	Φ×w(mm)	Φ180×50
Bearing wheel size	Φ×w(mm)	Φ74×70
additional wheels(dimensions)	Φ×w(mm)	Φ180×50
Wheels, number front/rear (x = driven)		1,1/2
Track width	b10 (mm)	648

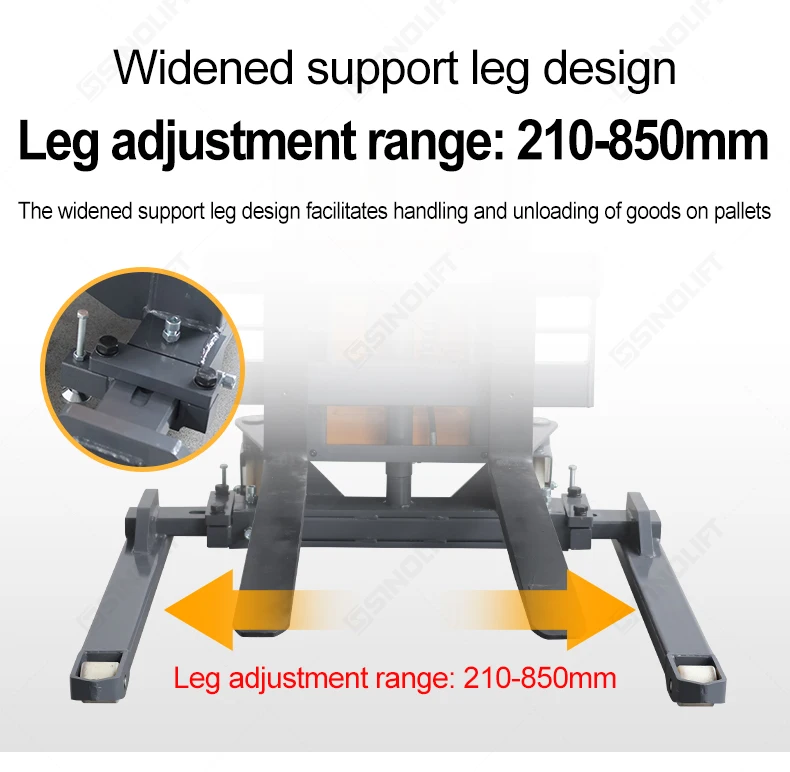

Track width	b11 (mm)	390/490				490	390/490				490	390/490
Height of mast, lowered	h1 (mm)	2077	1577	1827	2077	2327	2077	1577	1827	2077	2327	2077	1577
Free lift	h2 (mm)	0	0	0	0	0	0	0	0

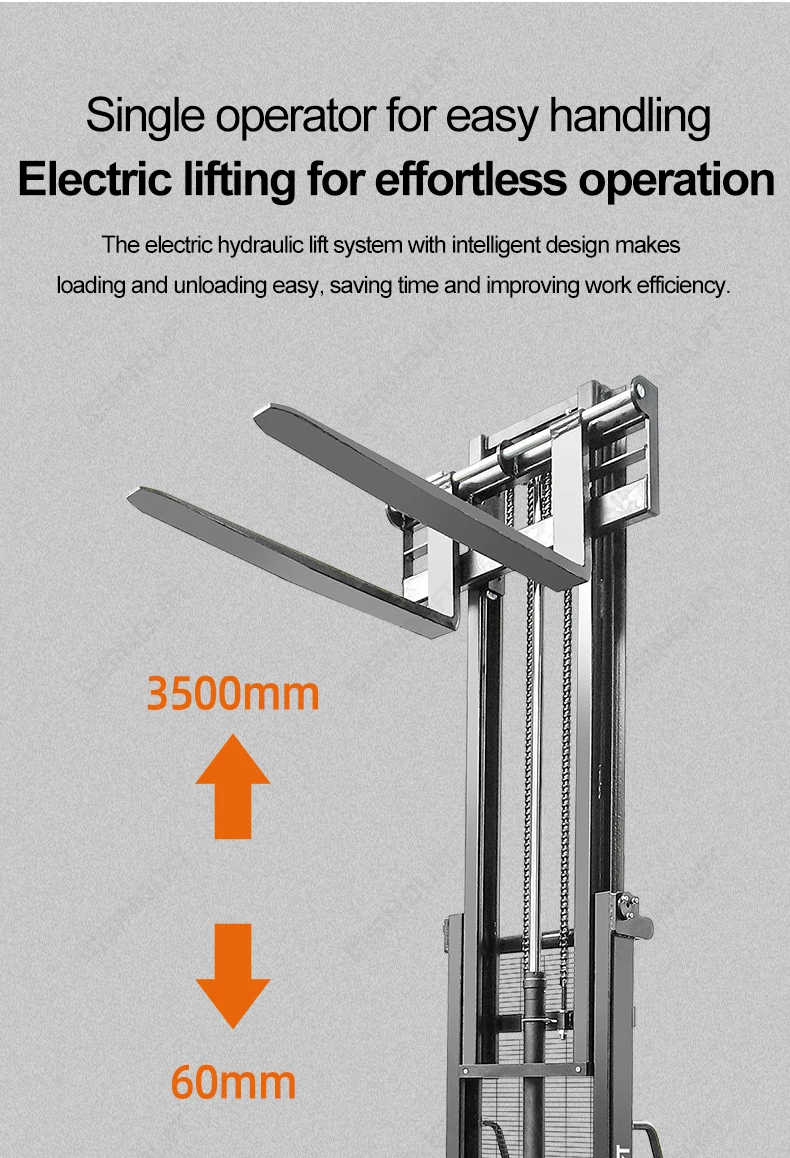

Lift	h3 (mm)	1600	2000	2500	3000	3500	1600	2000	2500	3000	3500	1600	2000
Height of mast, extended	h4 (mm)	2077	2567	3067	3567	4067	2077	2567	3067	3567	4067	2077	2567
Fork Height,Lowered	h13 (mm)	85
Overall length	l1 (mm)	1600/1800
Length to fork face	l2 (mm)	700
Overall width	b1/ b2 (mm)	760

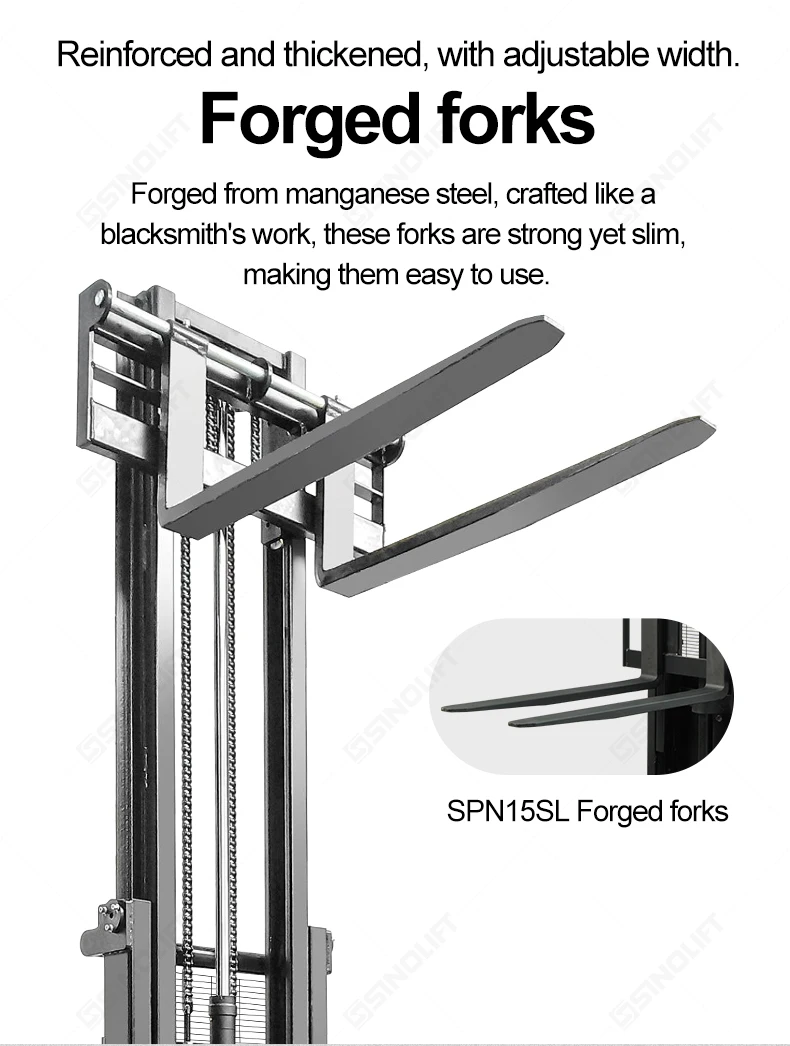

Fork dimensions	e/l (mm)	150/900(1100)

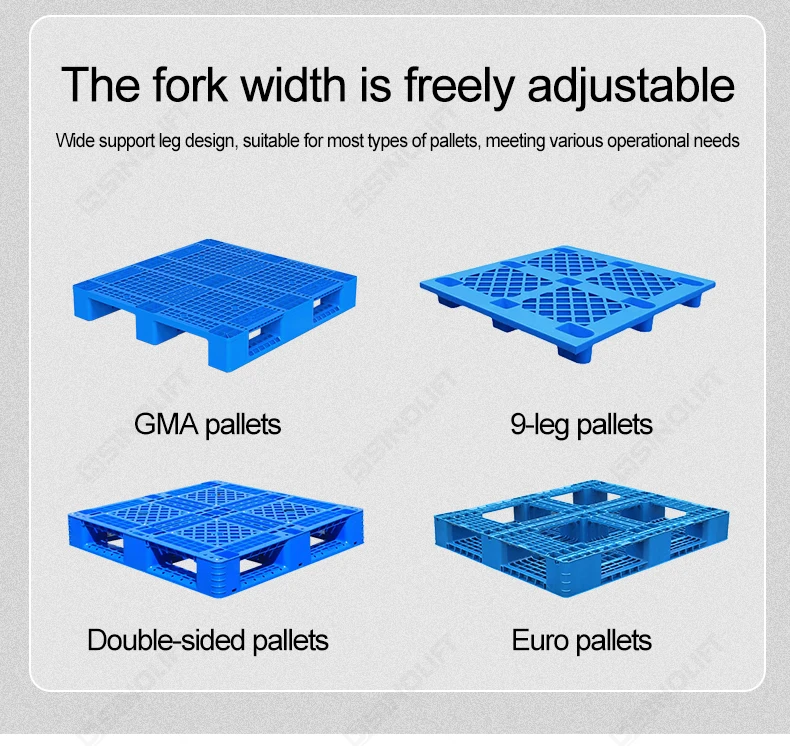

Width of forks	b5 (mm)	550/640				640	550/640				640	550/640
Min.Ground clearance	m2 (mm)	32
Aisle width with pallet 1000 x 1200 across forks	Ast (mm)	2250
Aisle width with pallet 800 x 1200 along forks	Ast (mm)	2240

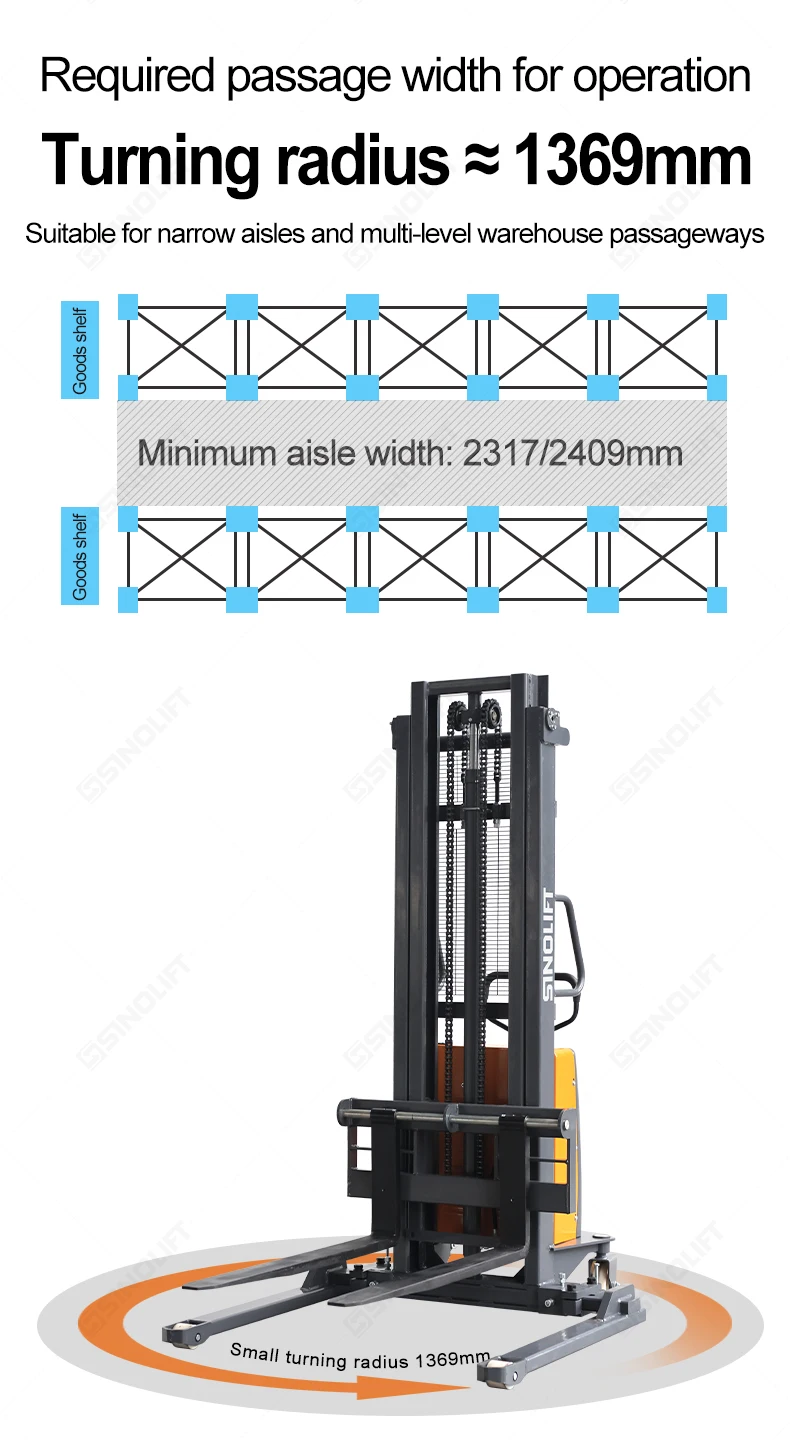

Min.Turning radius	Wa (mm)	1350
Lifting speed, with/without load	(mm/s)	80/145	80/145				65/145	65/145				60/145	60/145
Lowering speed, with/without load	(mm/s)	90/100	90/100				60/100	60/100				60/100	60/100
Service brake		machinery
Lift motor rating at S3 15%	(kW)	1.5
Battery according to DIN 43531/35/36 A,B,C,no		no
Battery voltage/rated capacity	(V/Ah)	12/120
Battery weight (± 5%)	(kg)	36
Noise level at operator‘s ear	(dB(A))	≤70
