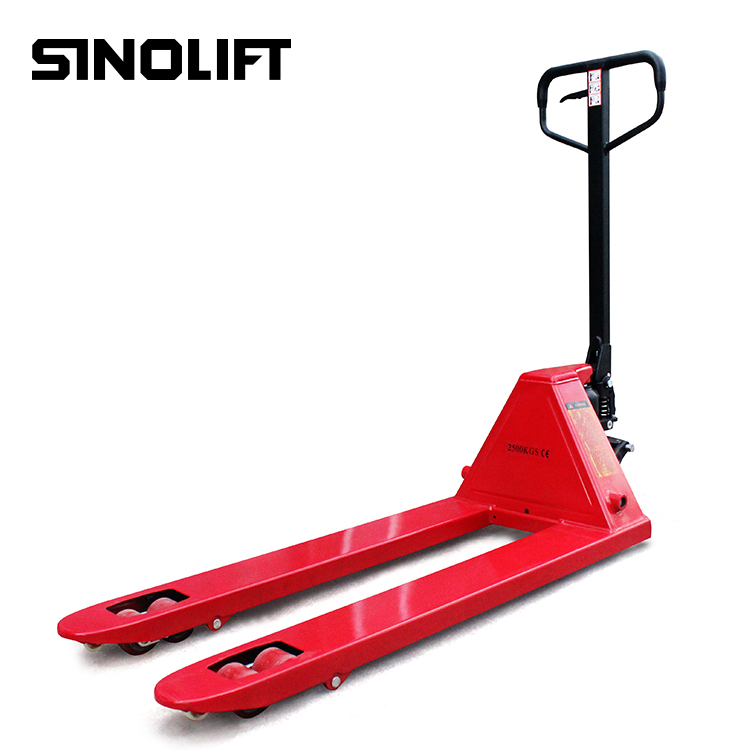

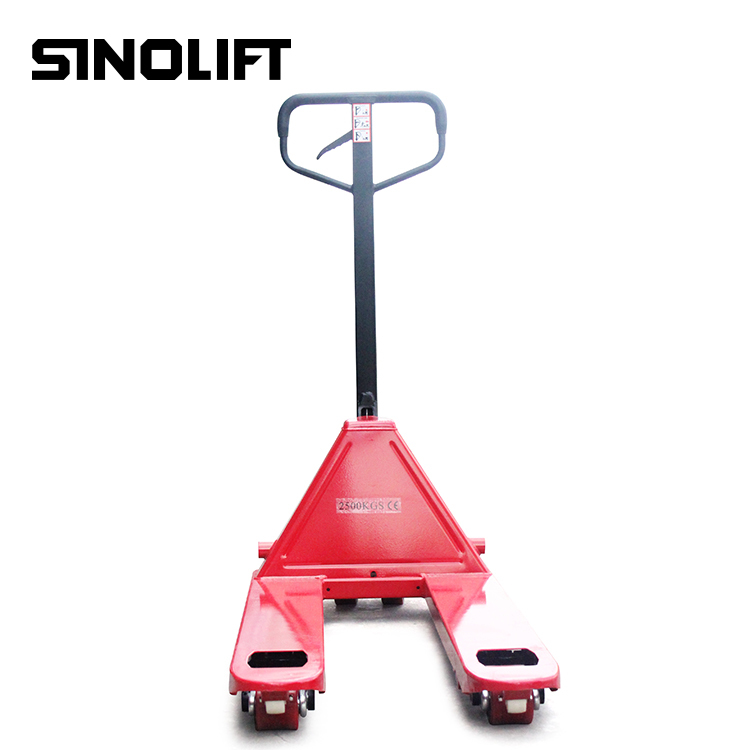

Sinolift DF Series DF25 DF30 Hand pallet truck hubwagen
Product Description
Features:
· The oil pump body is made by way of welding the prefabricated parts together first, then machining the welded body.
· Ergonomic Large Rubber handle with three control lever.
* Special lowering valve to control the trucks durable

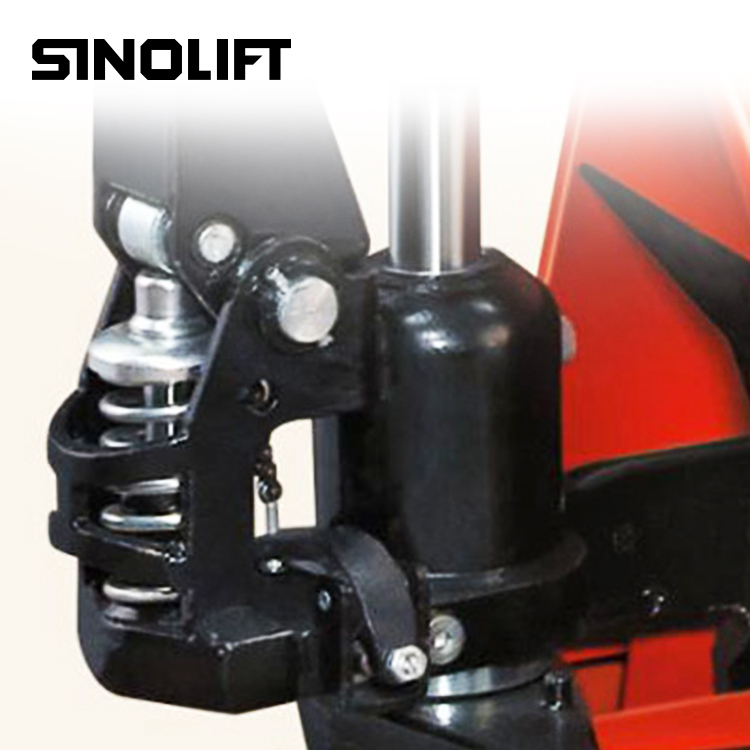

· Chrome piston and ram for smooth operation and prevents excessive wear on the pump & seal.
· Excellent turning angle of 180 degree facilities.
· Number of pump strokes-10. Lift height per stroke:11mm.
* Spray plastic painting surface
· Option:nylon wheel,polyurethane wheel,rubber wheel single fork roller or tandem fork roller.
· Remark: Special size for width and length can be made according to customer's requirement.
Model | DF25 | DF30 | ||||
Lifting Capacity | kg | 2500 | 3000 | |||
Lowered Fork Height H1 | mm | 85 | 75 | 85 | 75 | |
Max Height of ford H2 | mm | 200 | 190 | 200 | 190 | |
Lifting Height h | mm | 115 | 115 | 115 | 115 | |
Lenght of Forks L1 | mm | 800/900/1070/1100/1150/1220 | 800/900/1070/1100/1150/1220 | |||
Width of Fords B1 | mm | 160x60 | 160x60 | |||
Load Wheel | Single | mm | Ø80x93 | Ø74*93 | Ø80x93 | Ø74*93 |
Double | mm | Ø80x70 | Ø74*70 | Ø80x70 | Ø74*70 | |
Steer Wheel | mm | Ø200x50 | Ø180x50 | Ø200x50 | Ø180x50 | |
Overall Dimensions | Length L2 | mm | 1180/1280/1450/1480/1530/1600 | 1180/1280/1450/1480/1530/1600 | ||

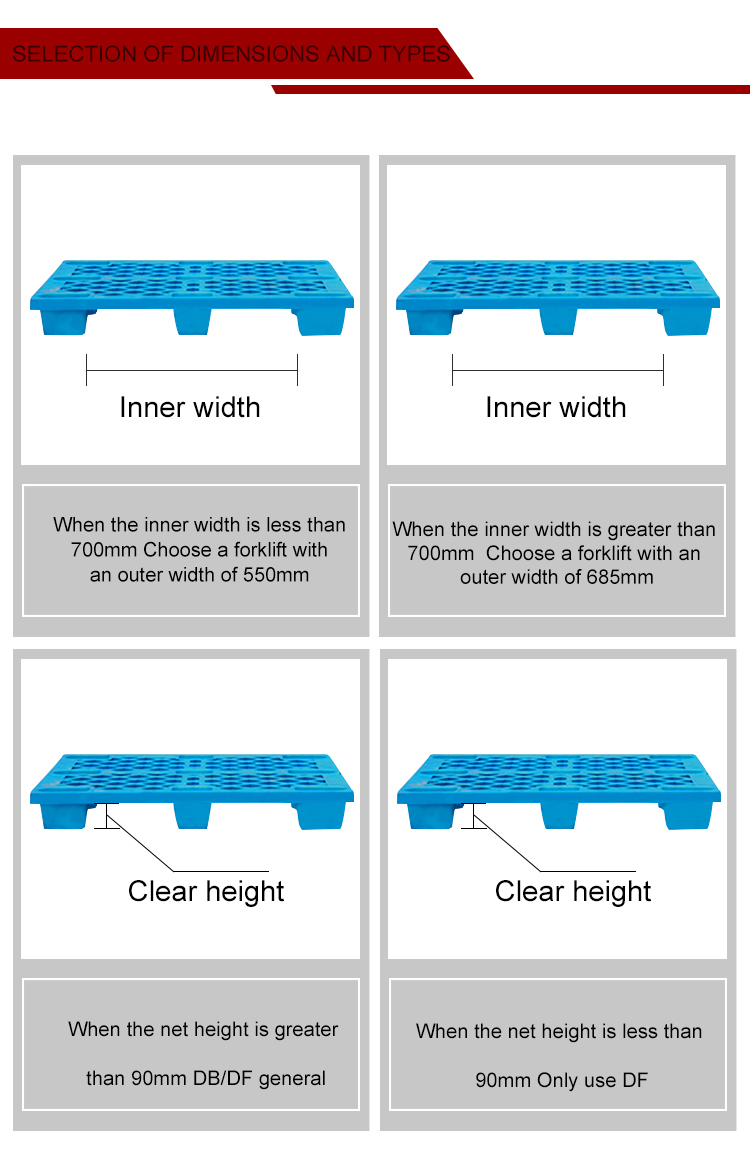

Width W1 | mm | 450/520/550/685 | 450/520/550/685 | |||
Height H | mm | 1198 | 1230 | |||
Self Weight | kg | 72-85 | 72-85 |
Detail Images
- Applicable Industries:
- Machinery Repair Shops, Food & Beverage Factory, Construction works
- After Warranty Service:
- Online support
- Local Service Location:
- United States, Italy
- Showroom Location:
- United States, Italy
- Condition:
- New
- Place of Origin:
- China
- Power Souce:
- Manual
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- Machinery Test Report:
- Provided
- Video outgoing-inspection:
- Provided
- Marketing Type:
- Ordinary Product
- Warranty of core components:
- 1 Year
- Core Components:
- Pump
- Product Name:
- Hand Pallet Truck
- Loading Capacity:
- 2500kg/3000kg
