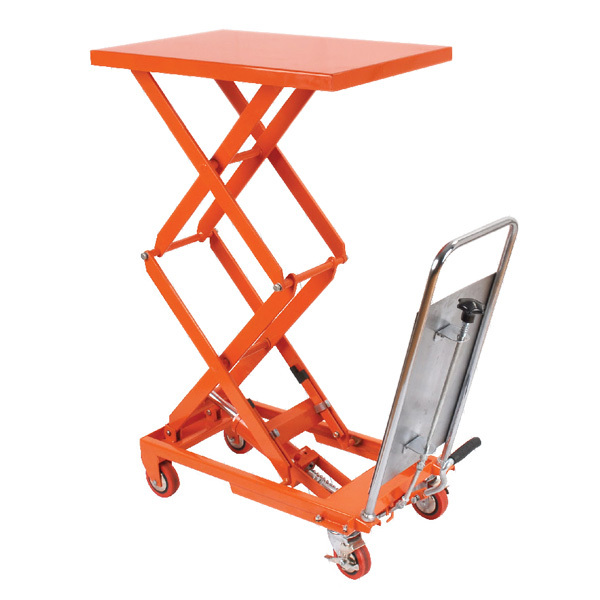

SINOLIFT CYTS series Hydraulic Table Lift
SINOLIFT CYTS series Hydraulic Table Lift
· Valuable material handling for use as a feeding table on assembly line.
· Structural heavy duty steel construction.
· Easy action foot operated hydraulic lift for raising table top to desired level.
· Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
· Hand operated table descent control.
· Over load by-pass valve protects operator and pump.
· Option: chrome plated handle, painted handle, folding handle & solid handle.
Model | CYT350S | CYT750S | CYT1000S | |
Load Capacity | kg | 350 | 750 | 1000 |
Max. Height | mm | 1300 | 900 | 1000 |
Min. Height | mm | 350 | 420 | 380 |
Table Dimension | mm | 910×500×52 | 1000×510×55 | 1016×515×60 |
Handle Height | mm | 970 | 1000 | 960 |
Stroke to Max. Height | stroke | ≤55 | ≤55 | ≤55 |
Wheel Diameter | mm | 127 | 150 | 150 |
Packing Size | mm | 1010×530×390 | 1190×630×460 | 1190×630×420 |
Self-Weight | kg | 110 | 112 | 115 |
Tags: apluslift 1500lb, forklift drum dumper, 55 gallon drum tipper, forklift drum lifter
If you want to know more products, we have: apluslift mt1500x, multi-function electric drum dumper, drum grab with ce
- Place of Origin:
- Shanghai, China (Mainland)
- Brand Name:
- Sinolift
- Lift Mechanism:
- Scissor Lift
- Lift Drive / Actuation:
- Hydraulic
- Min. Lifting Height:
- 350mm
- Weight:
- 115kg
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- Product name:
- hydraulic table lift
- Color:
- Orange
- Feature:
- Scissor Lift
- Load capacity:
- 350-1000kg
- Usage:
- lift
